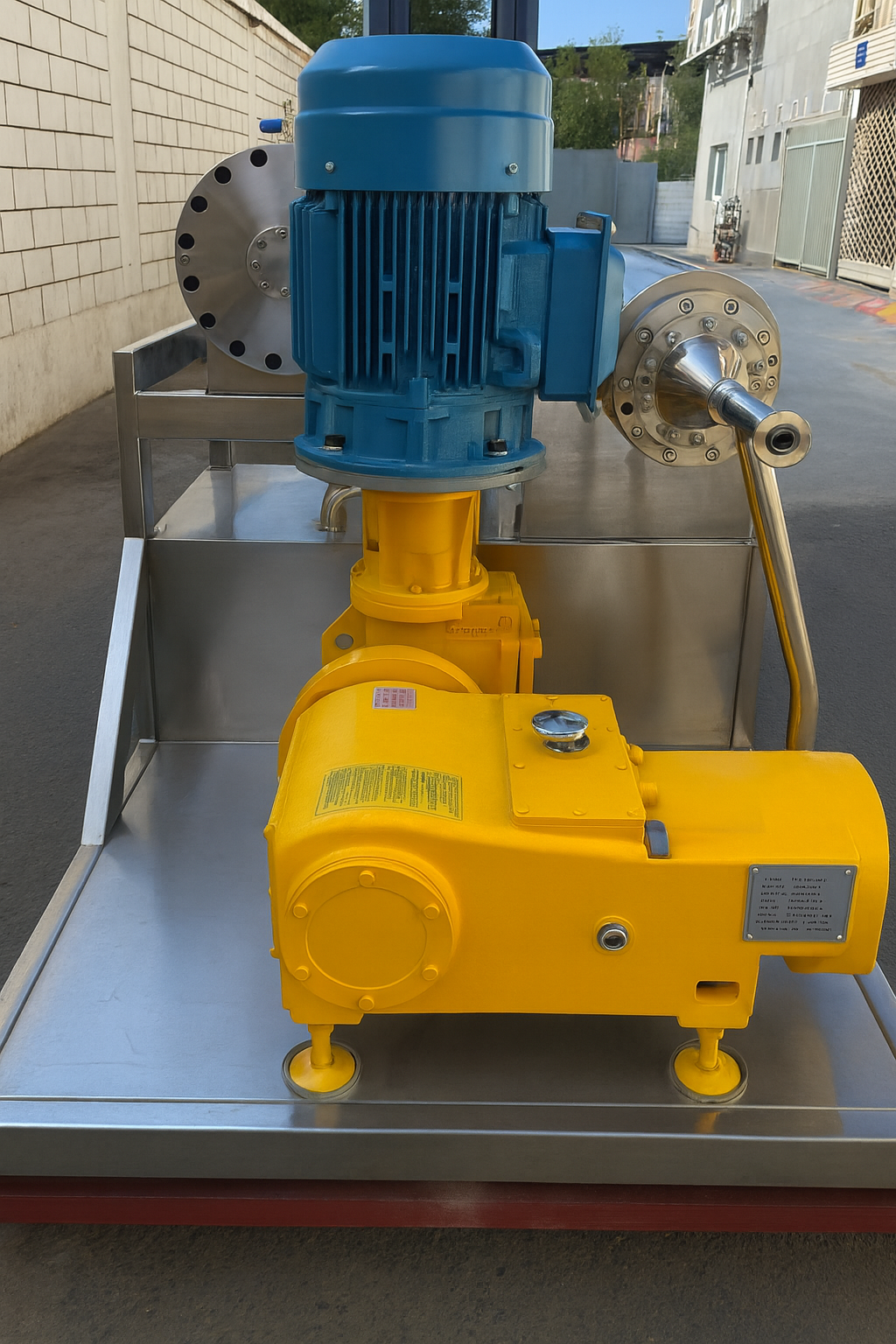

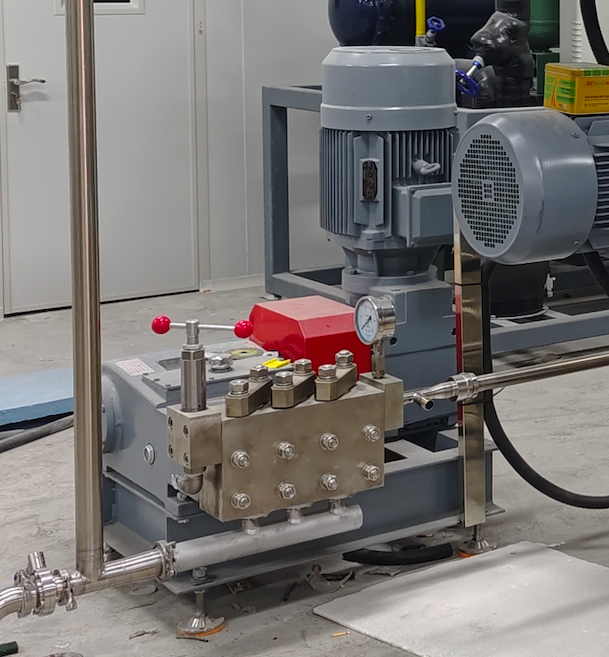

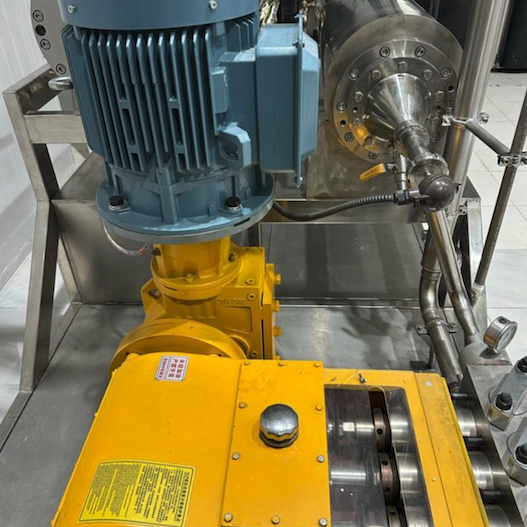

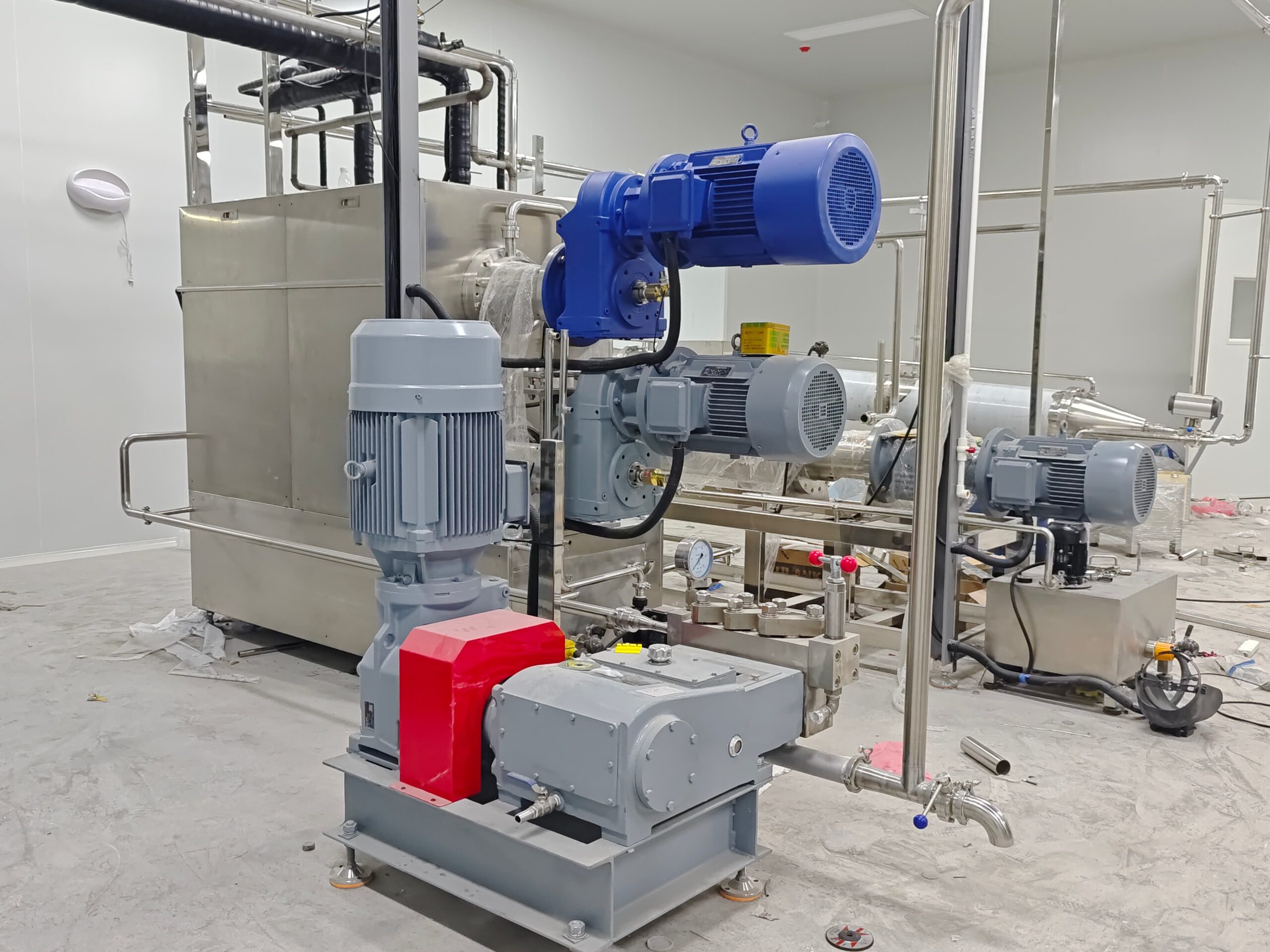

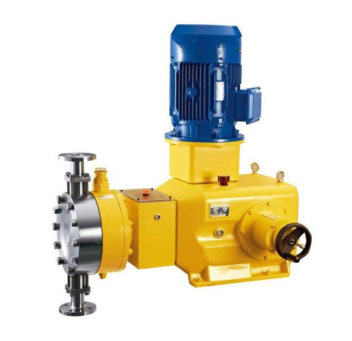

The HPP capacity ranges 2,000 li/hr to 6,000 li/hr, with a maximum pressure of 100 bars. The piston pump is driven by a reduction gear box, TEFC motor and a variable speed drive. It is not recommended to run the pump at less than 25Hz.
The unit will be mounted with a pressure transmitter for reliability and shock, and a safety relief valve.
*Design pressure: 10MPa, with a safety Valve, Piston/Plunger type
*Flow capacity: 2m³/hr – 6m³/hr, Material contact: SS316L, VFD Gear motor: 12kw-25kw (SEW or ABB)
