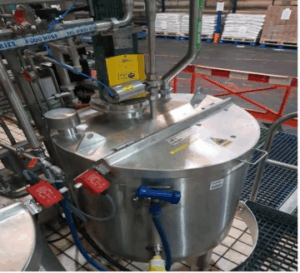

Referring to the design of the North American company, we add solvent tank equipment to the automatic production of the margarine/shortening production line.

The primary function of the solvent tank is to meet the requirements of the production formula. Oil-soluble additives, such as emulsifiers, colorants, antioxidants, essence, oil-soluble vitamins, etc., are manually added to the solvent tank in advance and configured at one time. In the later production, pump according to the established proportion through the PLC control system

*Contact Material/wet part: SS316L,320# polishing, Cladding: SS304 *Material Inlet and outlet: Inlet 4 nozzles and outlet 1 nozzle 2″ flange or union *Agitator: 40 rpm 1.1 kw agitators.Gear Motor brand: SEW, ABB or Guomao

*Thermal insulation material: Polyurethane,thickness:50mm

*With a temperature sensor PT100 connection, a flow guide plate on the inner contact material wall of the tank, and an anti-swirl device

*With a water Jacket for hot water heating

*Head design installed with CIP ball and manhole （Option)
